23 Apr Matplotlib – Add a super title for multiple plots in a figure

In Matplotlib, add a super title for multiple plots in a figure using the plt.suptitle() function. For multiple plots, we have used the plt.subplot() function.

Let us see an example:

# Add a super title for multiple plots in a figure

import matplotlib.pyplot as plt
import numpy as np

# Plot 1
xpts = np.array([0, 1, 2, 3])
ypts = np.array([4, 5, 6, 7])

# This means 2 rows, 1 columns, 1st sublplot
plt.subplot(2, 1, 1)

plt.plot(xpts, ypts)
plt.title("Figure 1")

# Plot 2
xpts = np.array([0, 1, 2, 3])
ypts = np.array([15, 20, 30, 45])

# This means 2 rows, 1 column, 2nd sublplot
plt.subplot(2, 1, 2)
plt.plot(xpts, ypts)
plt.title("Figure 2")

# Super Title
plt.suptitle("Multiple plots in a single figure")

# Displaying both the plots on a single figure
plt.show()

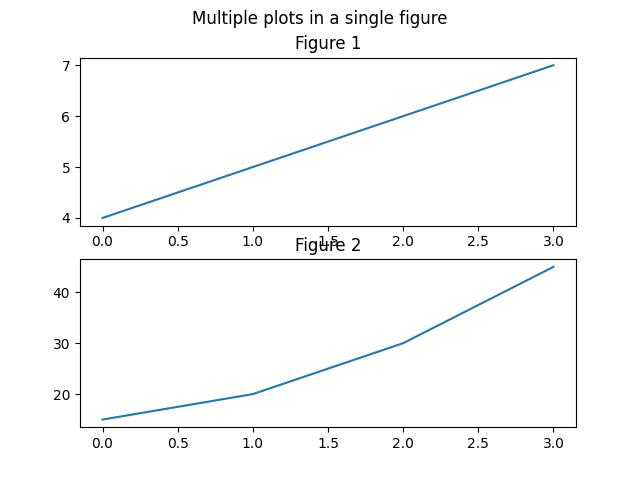

Output
